This article describes 7 classic applications and features of CNC machines in 2026, helping you select the right machine for reference.

Machining Parts

Any product is composed of various parts, and most parts are manufactured through CNC machining. Machining parts is currently the mainstream application of CNC machines, such as: automotive engine blocks, aerospace structural parts, medical bone screws, and 5G communication cavities. The key points of machining parts lie in high precision and high efficiency. High precision: Parts need strictly controlled tolerances to smoothly complete the next steps of assembly and re-machining processes. High efficiency: Processing speed needs to be fast to meet production needs.

Machine types commonly used for machining parts: 3-axis/5-axis vertical machining centers, horizontal machining centers, CNC turning-milling composite machine tools

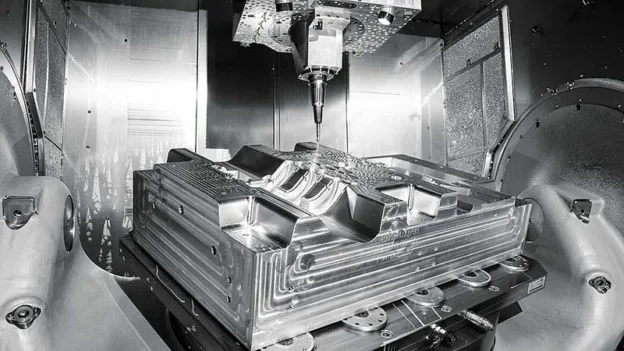

Machining Molds

Currently, automotive stamping dies, plastic injection molds, die-casting molds, etc., are all machined by CNC machines. Machining molds places very high performance requirements on CNC machines because the materials used for molds themselves are extremely hard, requiring extremely high cutting force and extremely high precision to ensure that the produced molds can be used for production. Therefore, CNC machines capable of machining molds must be equipped with box ways (hardways).

Machine types commonly used for machining molds: High-speed machining centers, gantry machining centers, graphite/EDM auxiliary machine tools

Machining Profiles

Whether it is rail transit body aluminum profiles, building curtain wall aluminum materials, solar frame profiles, or battery pack skeletons, secondary processing relies on CNC machines. Profiles are extruded in long strip shapes, so there are requirements for the CNC machine tool workbench, often requiring a working area of several meters or even over ten meters.

Machine types commonly used for machining profiles: Gantry profile machining centers, long-stroke vertical machining centers (extremely long XYZ strokes)

Machining Graphite

In industrial scenarios of “high temperature, electrical discharge, strong corrosion, and wear resistance,” almost all cannot do without high-quality CNC-machined graphite parts. Graphite machining faces many difficulties, among which the most difficult is graphite dust: graphite cutting generates a large amount of micron-level dust. This dust is conductive and extremely sticky; once it infiltrates machine tool linear guides, ball screws, or electrical cabinets, it will cause intensified mechanical wear or even short-circuit burning. Therefore, CNC machine tools used for graphite machining require fully enclosed protection and need to be accompanied by a dry dust collection system.

CNC machines used for machining graphite include: Graphite-dedicated high-speed machining centers (spindle 20,000~40,000 rpm)

Heavy-Duty Machining

There are also many heavy-duty machining scenarios completed by CNC machines. However, due to the huge volume of the workpieces—weighing up to tens or even hundreds of tons—ordinary vertical machining centers or horizontal machining centers simply cannot bear the load. Machines capable of heavy-duty machining must possess extremely strong anti-vibration rigidity, cutting force (BT50/HSK100 high-power spindle), and load-bearing capacity.

CNC machines used for heavy-duty machining include: Heavy-duty gantry machining centers, five-axis heavy-duty gantry/swivel head machine tools

Machining Wood

Solid wood furniture, musical instruments (guitar/violin curved surfaces), panel furniture, and wood molds are also mostly processed by CNC machines. However, compared to machining metal, CNC machines for machining wood do not have high requirements for cutting force. Therefore, CNC machines used for machining wood have a relatively lower cost.

CNC machines used for machining wood include: Woodworking CNC routers, five-axis woodworking machining centers

Machining Jewelry

Jewelry machining often refers to the processing of items such as gold/platinum jewelry, high-end watch cases, and precision setting bases. The processing of these items requires extremely micro tools and extremely high precision control, with spindle speeds often above 20,000, or even 40,000~60,000 rpm or higher.

CNC machines used for machining jewelry: CNC precision engraving machines, CNC high-speed machines.
