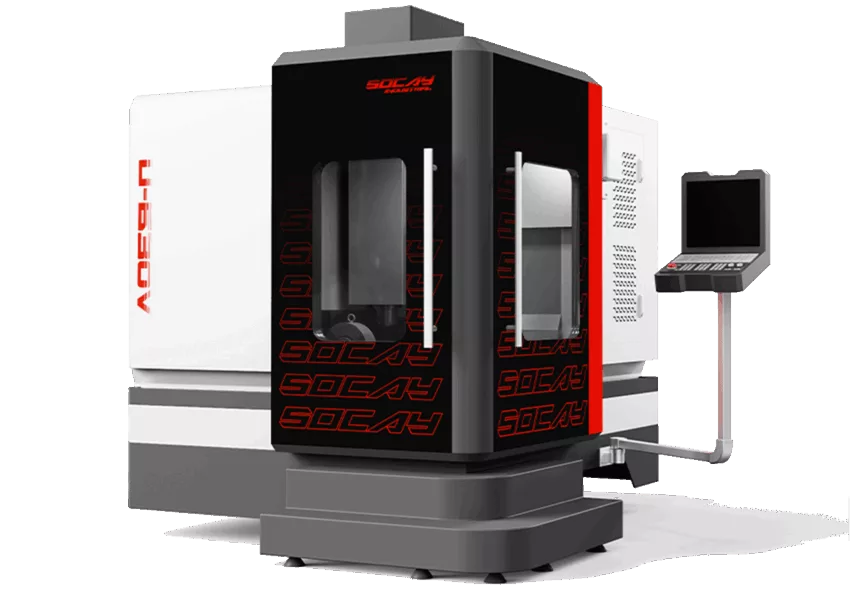

5-Axis Machining Center

Our 5-axis machining centers can perform high-precision, multi-axis, high-speed simultaneous machining. With a one-time clamping, complex spatial curved surfaces can be machined with high precision, The surface finish can be achieved very high. and the overall machining time is significantly reduced compared to 3-axis and 4-axis machine.

Our 5-Axis Machines

5-Axis

Our 5-axis machines have four types, which are vertical 5-axis machines, gantry 5-axis machines, and overhead gantry 5-axis machines. We have five appearance styles and 12 basic models to choose from.

Machine Parameters

5-Axis Tapping Series
5-Axis VMC Series
5-Axis GMC Series
Overhead traveling gantry 5-axis
5-Axis Swivel-Head

Description	Unit	U280T	U400T
X/Y/Z axis travel	mm	600x400x330	600x450x330
Table (rotary table) size	mm	φ 200	φ 260
Max. workpiece swing diameter	mm	φ 280	φ 400
Spindle nose to table surface	mm	55-385	55-385
Max. table load	kg	35	50
Spindle taper		BT30	BT30
Max. spindle speed	rpm	20000	20000
Rated spindle power	kw	5.5	5.5
X/Y/Z axis rapid traverse	m/min	48/48/48	48/48/48
X/Y/Z axis positioning accuracy	mm	±0.008	±0.008
X/Y/Z axis repeatability	mm	±0.003/300	±0.003/300
A-axis travel (tilting axis)	°	±120°	±120°
Max. A-axis speed	rpm	200	200
Rated A-axis torque	N.m	265	265
Max. A-axis torque	N.m	460	460
A-axis positioning accuracy	arcsec	±8"	±8"
A-axis repeatability	arcsec	5"	5"
C-axis travel (rotary axis)	°	360°	360°
Max. C-axis speed	rpm	250	200
Rated C-axis torque	N.m	116	116
Max. C-axis torque	N.m	245	245
C-axis positioning accuracy	arcsec	±8"	±8"
C-axis repeatability	arcsec	5"	5"
Braking method		Pneumatic	Pneumatic
Tool magazine type		Arm-type servo	Arm-type servo
Tool capacity	pcs	21	21
Tool change time (T-to-T)	s	2	2
Max. tool length	mm	200	200
Max. tool weight	kg	4	4
Machine dimensions (L x W x H)	mm	1900x2200x2450	1900x2300x2450
Machine weight	kg	3300	3500

View Less

Description	Unit	U400V	U500V	U630V
X/Y/Z axis travel	mm	500x500x450	800x550x500	800x550x500
Table (rotary table) size	mm	φ 260	φ 350	φ 500
Max. workpiece swing diameter	mm	φ 400	φ 500	φ 630
Spindle nose to table surface	mm	40-490	50-550	50-550
Max. table load	kg	60	200	300
Spindle taper		BT40	BT40	BT40
Max. spindle speed	rpm	12000	12000	12000
Motorized spindle (Optional)	rpm	15000/20000	15000/20000	15000/20000
Rated spindle power	kw	7.5	7.5	11
X/Y/Z axis rapid traverse	m/min	36/36/36	36/36/36	36/36/36
X/Y/Z axis positioning accuracy	mm	±0.008	±0.008	±0.008
X/Y/Z axis repeatability	mm	±0.003/300	±0.003/300	±0.003/300
A-axis travel (tilting axis)	°	±120°	±120°	±120°
Max. A-axis speed	rpm	200	60	50
Rated A-axis torque	N.m	265	782	782
A-axis positioning accuracy	arcsec	±8"	±8"	±8"
A-axis repeatability	arcsec	5"	5"	5"
C-axis travel (rotary axis)	°	360°	360°	360°
Max. C-axis speed	rpm	250	200	140
Rated C-axis torque	N.m	116	363	363
C-axis positioning accuracy	arcsec	±8"	±8"	±10"
C-axis repeatability	arcsec	5"	5"	5"
Braking method		Pneumatic / Hydraulic brake	Pneumatic / Hydraulic brake	Pneumatic / Hydraulic brake
Tool magazine type		Disc-type mechanical	Disc-type mechanical	Disc-type mechanical
Tool capacity	pcs	24	24	24
Tool change time (T-to-T)	s	2	2	2
Max. tool length	mm	350	350	350
Max. tool weight	kg	8	8	8
Machine dimensions (L x W x H)	mm	2500x2600x2750	2550x2600x2750	2650x2800x2750
Machine weight	kg	4500	5500	5800

View Less

Description	Unit	U400G	U630G
X/Y/Z axis travel	mm	600x400x350	700x1000x500
Table (rotary table) size	mm	φ 260/300	φ 400/500
Max. workpiece swing diameter	mm	φ 400	φ 630
Spindle nose to table surface	mm	100-450	100-600
Max. table load	kg	100	300
Spindle taper		BT40	BT40
Max. spindle speed	rpm	12000	12000
Motorized spindle (Optional)	rpm	15000/20000	15000/20000
Rated spindle power	kw	11	11
X/Y/Z axis rapid traverse	m/min	30/30/30	30/30/30
X/Y/Z axis positioning accuracy	mm	±0.008	±0.008
X/Y/Z axis repeatability	mm	±0.003/300	±0.003/300
A-axis travel (tilting axis)	°	±120	±120
Max. A-axis speed	rpm	200	50
Rated A-axis torque	N.m	265	820
Max. A-axis torque	N.m	460	1660
A-axis positioning accuracy	arcsec	±8"	±10"
A-axis repeatability	arcsec	5"	5"
C-axis travel (rotary axis)	°	360°	360°
Max. C-axis speed	rpm	200	140
Rated C-axis torque	N.m	120	370
Max. C-axis torque	N.m	245	700
C-axis positioning accuracy	arcsec	±8"	±10"
C-axis repeatability	arcsec	5"	5"
Braking method		Pneumatic / Hydraulic brake	Pneumatic / Hydraulic brake
Tool magazine type		Disc-type mechanical	Disc-type mechanical
Tool capacity	pcs	24/32	24/32
Tool change time (T-to-T)	s	2	2
Max. tool length	mm	350	350
Max. tool weight	kg	8	8
Machine dimensions (L x W x H)	mm	2750x2800x2950	3250x2800x2950
Machine weight	kg	4500	7800

View Less

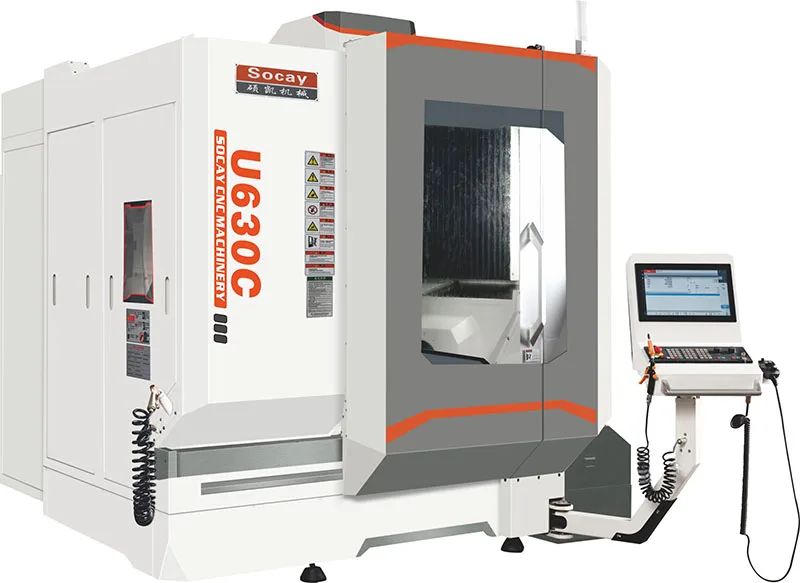

Description	Unit	U500C	U630C	U900C
X/Y/Z axis travel	mm	600x650x450	700x1000x500	900x1000x600
Table (rotary table) size	mm	φ 350	φ 400	φ 600
Max. workpiece swing diameter	mm	φ 500	φ 630	φ 900
Spindle nose to table surface	mm	100-550	100-700	120-720
Max. table load	kg	250	300	650
Spindle taper		HSK A63	HSK A63	HSK A63
Max. spindle speed	rpm	20000	20000	20000
Rated spindle power	kw	18.5	22	22
X/Y/Z axis rapid traverse	m/min	30/30/30	30/30/30	30/30/30
X/Y/Z axis positioning accuracy	mm	±0.008	±0.008	±0.008
X/Y/Z axis repeatability	mm	±0.003/300	±0.003/300	±0.003/300
A-axis travel (tilting axis)	°	±120	±120	±120
Max. A-axis speed	rpm	50	50	50
Rated A-axis torque	N.m	820	820	2400
Max. A-axis torque	N.m	1660	1660	4500
A-axis positioning accuracy	arcsec	±10"	±10"	±10"
A-axis repeatability	arcsec	5"	5"	5"
C-axis travel (rotary axis)	°	360°	360°	360°
Max. C-axis speed	rpm	140	140	100
Rated C-axis torque	N.m	370	370	782
Max. C-axis torque	N.m	700	700	1600
C-axis positioning accuracy	arcsec	±10"	±10"	±10"
C-axis repeatability	arcsec	5"	5"	5"
Braking method		Hydraulic	Hydraulic	Hydraulic
Tool magazine type		Chain-type servo	Chain-type servo	Chain-type servo
Tool capacity	pcs	32	32	32
Max. tool length	mm	350	350	350
Max. tool weight	kg	8	8	8
Machine dimensions (L x W x H)	mm	2650x3300x2850	3850x3500x2950	3150x3700x3500
Machine weight	kg	6000	9800	13500

View Less

Description	Unit	U3020G	U4025G
X/Y/Z axis travel	mm	3200x2000x1000	4600x2600x100
Table (rotary table) size	mm	3000x2000	4000x2500
Max. table load	T	5T/m²	7T/m²
Spindle nose to table surface	mm	125-1125	150-1150
Gantry width		2700	3200
Spindle taper		HSKA63	HSKA63
Max. spindle speed	rpm	18000	18000
Rated spindle power	kw	30	30
X/Y/Z axis rapid traverse	m/min	16/16/16	16/16/16
X/Y/Z axis positioning accuracy	mm	±0.008	±0.008
X/Y/Z axis repeatability	mm	±0.003/300	±0.003/300
A-axis travel (tilting axis)	°	±110	±110
Max. A-axis speed	rpm	60	60
Rated A-axis torque	N.m	700	700
A-axis positioning accuracy	arcsec	±8"	±8"
A-axis repeatability	arcsec	5"	5"
C-axis travel (rotary axis)	°	360°	360°
Max. C-axis speed	rpm	60	60
Rated C-axis torque	N.m	715	715
C-axis positioning accuracy	arcsec	±8"	±8"
C-axis repeatability	arcsec	5"	5"
Braking method		Hydraulic	Hydraulic
Tool magazine type		Arm-type servo	Arm-type servo
Tool capacity	pcs	24	24
ool change time (T-to-T)	s	2	2
Max. tool length	mm	350	350
Max. tool weight	kg	8	8
Machine dimensions (L x W x H)	mm	6750x4300x4950	10500x6100x6020
Machine weight	kg	28000	48000

View Less

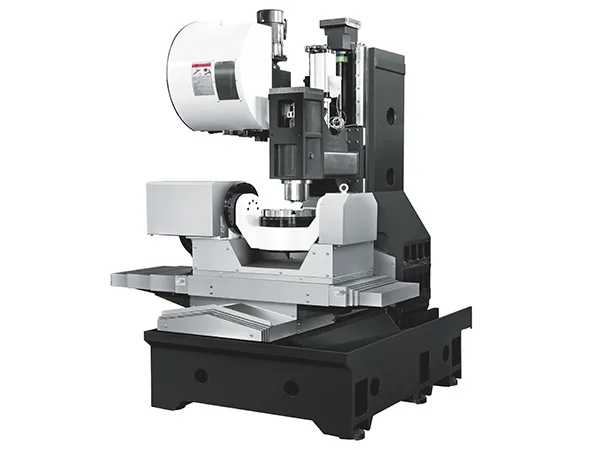

Vertical structure

The vertical structure is a classic structure, with relatively lower manufacturing costs. Possesses powerful longitudinal cutting force

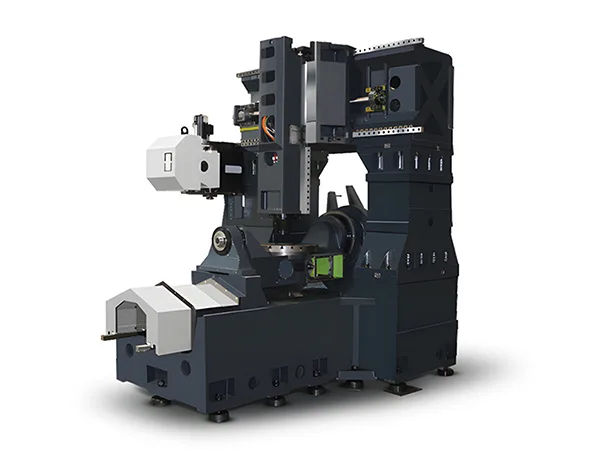

Gantry structure

The gantry-structure 5-axis machine will be more stable under high-speed machining conditions.

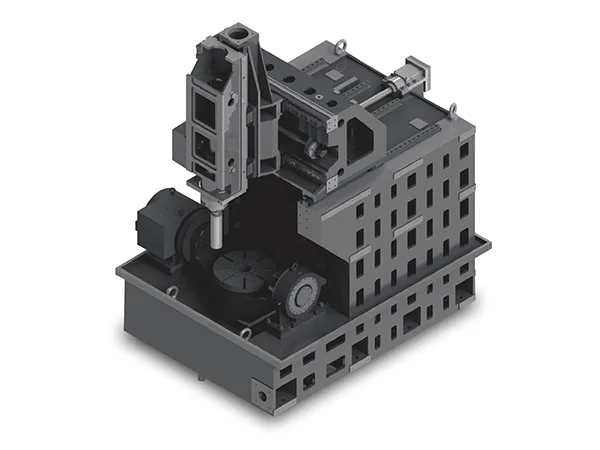

Overhead traveling gantry

While retaining the stability of the gantry structure, the overhead traveling gantry structure is more flexible in simultaneous linkage.

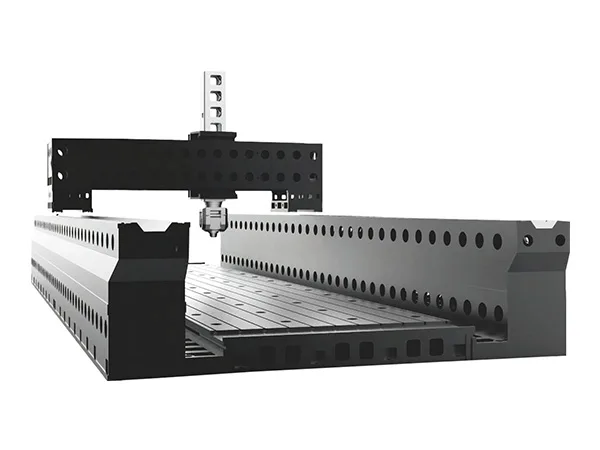

Swivel-head structure

The swivel-head structure is a structure specially prepared for large and ultra-large workpieces; the swivel-head can achieve large-travel movement.

Why Choose Our 5-Axis CNC Machines?

Our 5-axis machines have mature technology and excellent assembly workmanship, and are the most cost-effective 5-axis machines you can find, capable of achieving long-term precision retention even under high-intensity use. Our machine castings are made of solid materials, and the cast iron will be fully seasoned outdoors until the stress completely disappears. We also provide a two-year warranty.

Applications of our 5-Axis CNC Machines

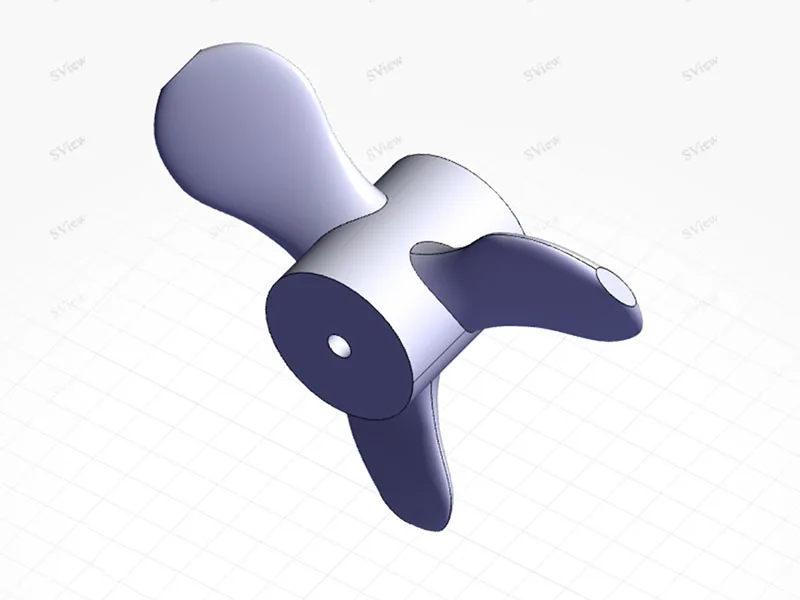

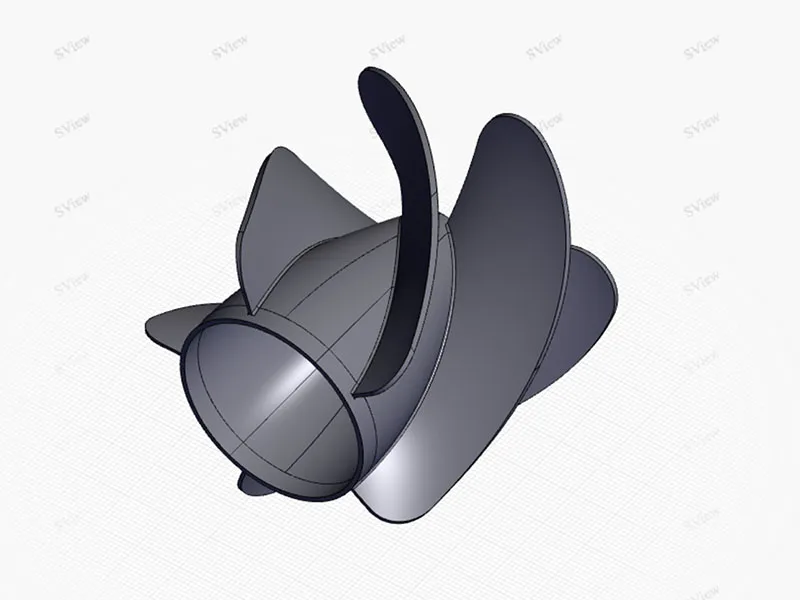

Large-skew propeller

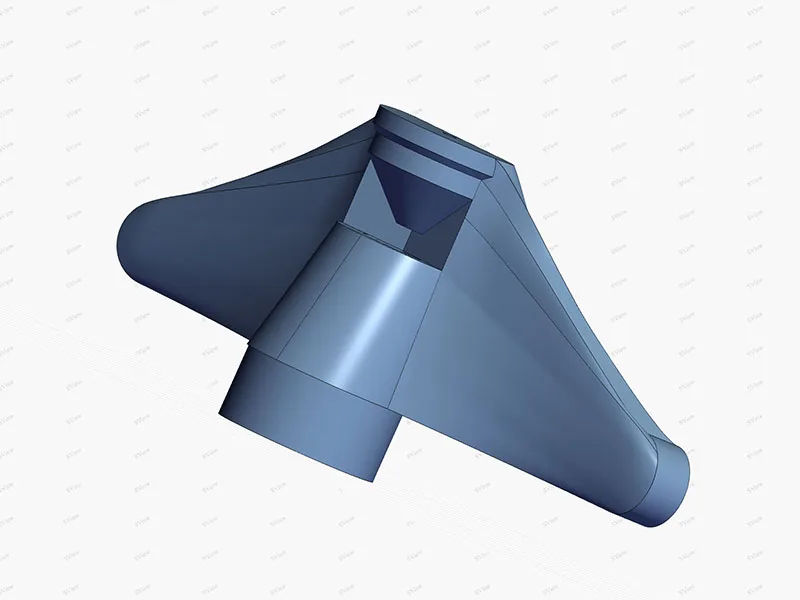

Large curvature workpiece

Complex assembly parts

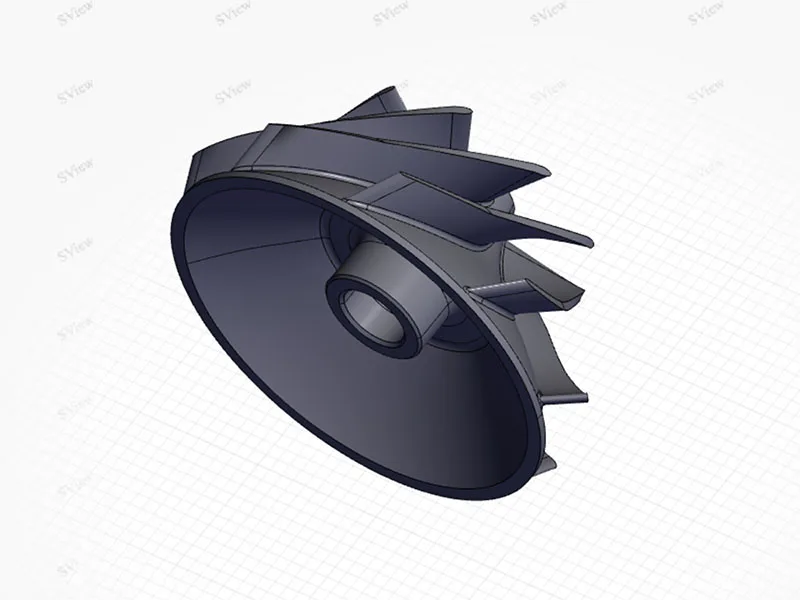

Turboprop

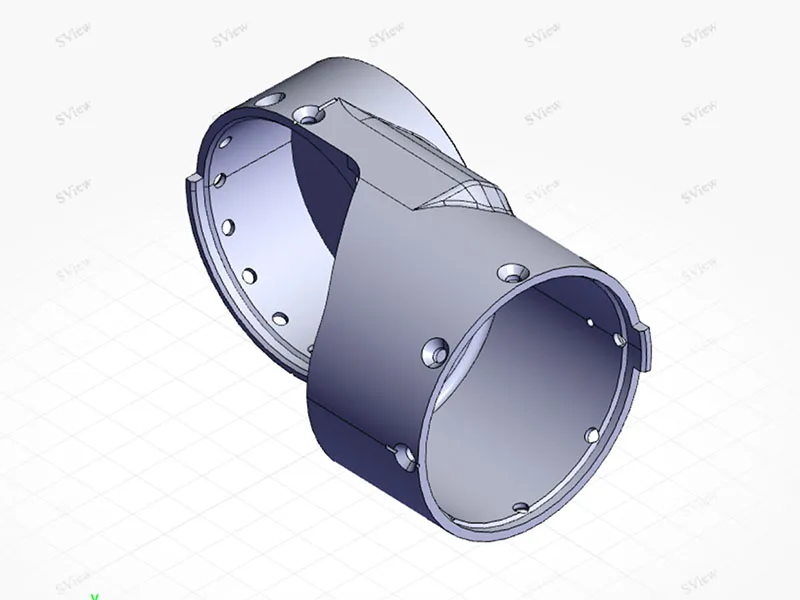

Joint connectors

Turboprop

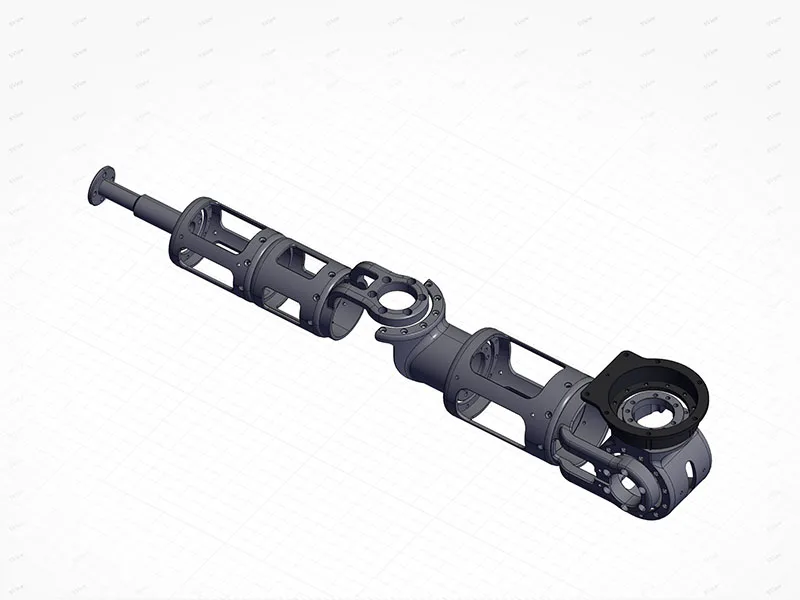

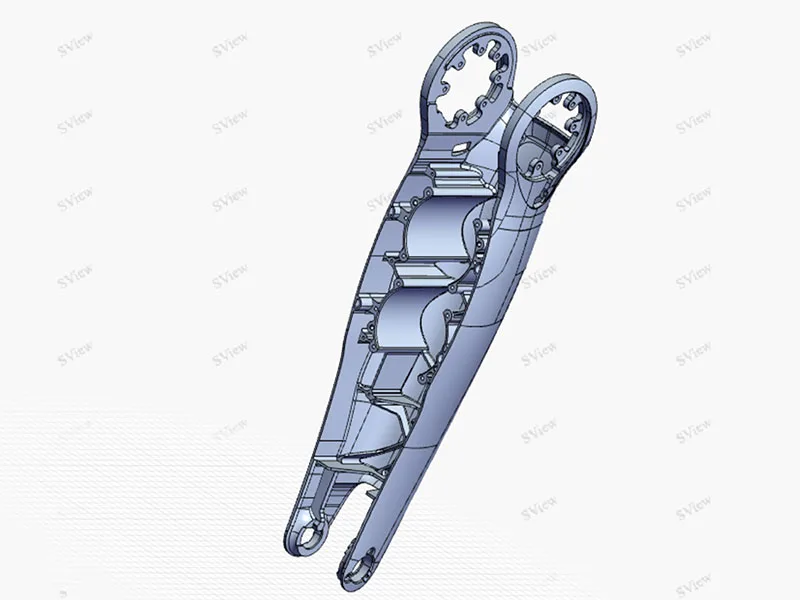

Robotic arm

FAQs about 5-axis machines

What should you consider before purchasing a 5 Axis Machining Center?

Please provide:
1.Maximum workpiece dimensions
2.Maximum workpiece weight
3.Material type
4.Required machining operations
5.Required accuracy
6.Annual production volume
7.Preferred CNC controller
5.Required spindle speed
6.Tool magazine capacity
7.Automation requirements

What materials can a 5 Axis Machining Center machine?

Common materials include:
Metals：Aluminum alloy、Carbon steel、Stainless steel、Titanium alloy、Inconel、Copper、Cast iron
Non-metallic Materials：Engineering plastics、Composite materials、Graphite、Carbon fiber

What is simultaneous 5-axis machining?

Simultaneous 5-axis machining means all five axes move at the same time during machining.
Advantages:
1.Continuous toolpath
2.Smooth surface finish
3.Reduced machining time
4.Better accuracy on complex surfaces

This is different from 3+2 indexing machining, where the rotary axes position the workpiece first and the three linear axes perform machining

What spindle is suitable for a 5 Axis Machining Center?

Selection depends on the application.

High-Speed Spindle
Suitable for:Aluminum、Graphite、Mold finishing
Typical speed:12,000–24,000 rpm

High-Torque Spindle
Suitable for:Steel、Titanium、Heavy cutting
Typical speed:6,000–12,000 rpm

Common spindle interfaces:BT40、BT50、HSK-A63、HSK-A100

What industries use 5 Axis Machining Centers?

Typical industries include:
Aerospace：Aircraft structural components、Engine parts、Turbine blades
Medical：Artificial joints、Dental implants、Surgical instruments
Mold & Die：Injection molds、Die casting molds、Precision mold cores
Automotive：Engine components、Racing parts、Prototype development
Energy：Turbine components、Compressor parts

What accuracy can a 5 Axis Machining Center achieve?

Typical accuracy:
Positioning accuracy:±0.003–0.008 mm
Repeatability:±0.002–0.005 mm
High-end machines may include:
1.Linear scales
2.Thermal compensation
3.Laser calibration
4.Dynamic accuracy compensation

Why choose our 5 Axis Machining Center?

Socay Advantages:
1.High-rigidity machine structure
2.High-speed and high-torque spindle options
3.Advanced 5-axis kinematics
4.Excellent dynamic accuracy
5.International CNC control systems
6.Customized solutions for different industries

What are the advantages of a 5 Axis Machining Center?

1.One Setup for Complete Machining
A single setup reduces repositioning and minimizes cumulative errors.
Benefits:Higher dimensional accuracy、Better positional accuracy、Reduced setup time

2.Machine Complex Geometries
Suitable for Impellers、Turbine blades、Aerospace components、Medical implants、Mold cavities

Better Surface Finish
Optimized tool orientation reduces vibration and improves surface roughness.

Higher Productivity
Advantages include:Fewer setups、Shorter cycle times、Less manual intervention、Lower production costs

Performance

Efficiency

Function

Not sure how to choose?

Machining Workshop Turnkey Solutions

CNC Materials

CNC Machine Build & Price Tool

CNC Machine Guide

Blog & Post

Patent Certification

The Stories of Socay Industrial

Become Our Agent & OEM Services

Visit Our Factory

5-Axis Machining Center

Our 5-Axis Machines

Machine Parameters

Vertical structure

Gantry structure

Overhead traveling gantry

Swivel-head structure

Why Choose Our 5-Axis CNC Machines?

Applications of our 5-Axis CNC Machines

Large-skew propeller

Large curvature workpiece

Complex assembly parts

Turboprop

Joint connectors

Turboprop

Robotic arm

FAQs about 5-axis machines

5-Axis Machining Center

Our 5-Axis Machines

Machine Parameters

Vertical structure

Gantry structure

Overhead traveling gantry

Swivel-head structure

Why Choose Our 5-Axis CNC Machines?

Applications of our 5-Axis CNC Machines

Large-skew propeller

Large curvature workpiece

Complex assembly parts

Turboprop

Joint connectors

Turboprop

Robotic arm

FAQs about 5-axis machines

Send Your Inquiry
