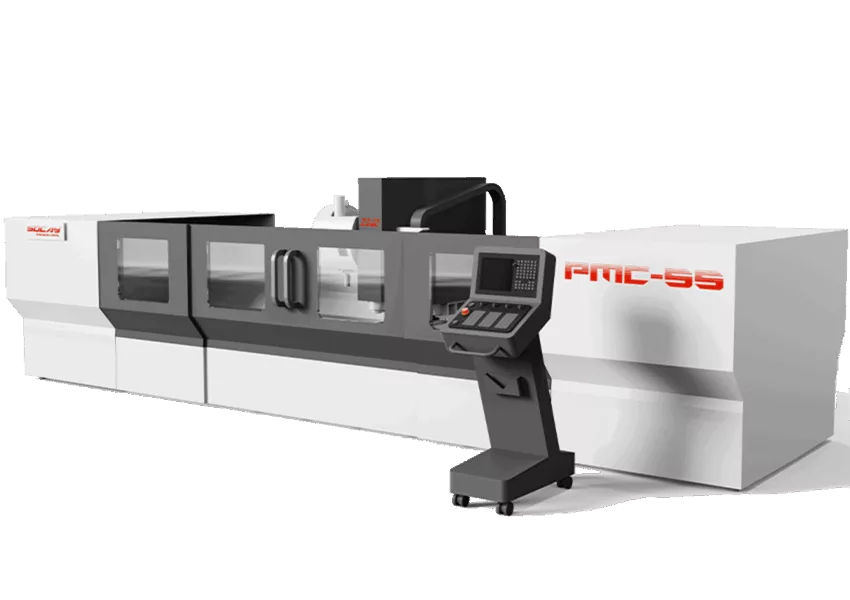

Our profile machines can infinitely increase the worktable length to suit different standards of profile machining, and we have five sizes available to choose from in the standard configuration.
| Standard configuration | Unit | PMC-25 | PMC-35 | PMC-45 | PMC-55 | PMC-65 |
|---|---|---|---|---|---|---|
| X axis travel | mm | 2500 | 3500 | 4500 | 5500 | 6500 |
| Y axis travel/Optional | mm | 400/600 | 400/600 | 400/600 | 400/600 | 400/600 |
| Z axis travel/Optional | mm | 250/400 | 250/400 | 250/400 | 250/400 | 250/400 |
| Worktable size | mm | 2500x400x600 | 3500x400x600 | 4500x400x600 | 5500x400x600 | 6500x400x600 |
| Worktable Max load | kg | 2500 | 3000 | 3000 | 3000 | 3000 |
| Distance from spindle nose to worktable | mm | 10-370/520 | 10-370/520 | 10-370/520 | 10-370/520 | 10-370/520 |
| X axis rapid travel speed | M/min | 60 | 60 | 60 | 60 | 60 |
| Y axis rapid travel speed | M/min | 48 | 48 | 48 | 48 | 48 |
| Z axis rapid travel speed | M/min | 48 | 48 | 48 | 48 | 48 |
| Lubrication system | Oil immersion | Oil immersion | Oil immersion | Oil immersion | Oil immersion | |
| Spindle type | BT30/BT40 | BT30/BT40 | BT30/BT40 | BT30/BT40 | BT30/BT40 | |
| Spindle speed | rpm/min | 15000/20000 | 15000/20000 | 15000/20000 | 15000/20000 | 15000/20000 |
| Spindle power | kw | 5.5/7.5 | 5.5/7.5 | 5.5/7.5 | 5.5/7.5 | 5.5/7.5 |
| Positioning accuracy | mm | 0.005/300 | 0.005/300 | 0.005/300 | 0.005/300 | 0.005/300 |
| RePositioning accuracy | mm | 0.003/300 | 0.003/300 | 0.003/300 | 0.003/300 | 0.003/300 |
| Machine Size | mm | 5000x3000x2600 | 6000x3000x2600 | 7000x3000x2600 | 8000x3000x2600 | 9000x3000x2600 |
| Machine Weight | kg | 9000 | 10000 | 11000 | 13000 | 15000 |

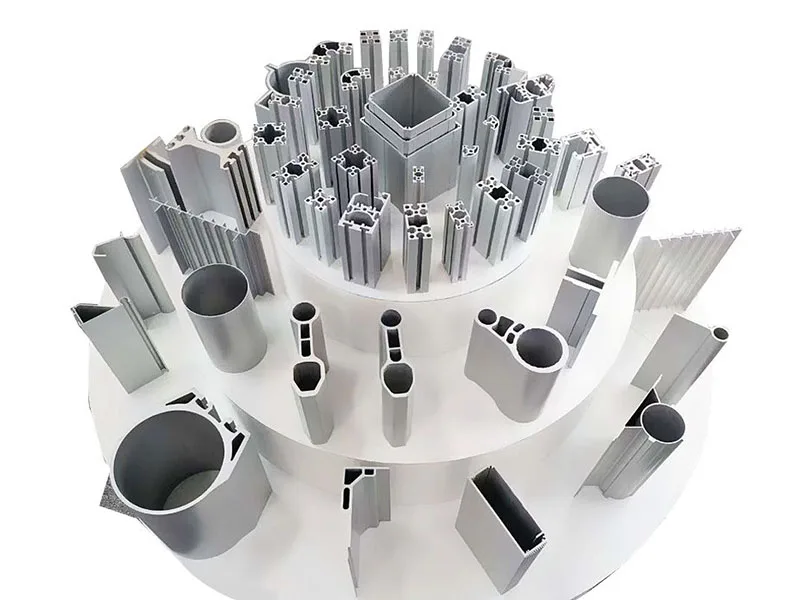

Our profile machining center can complete the machining of more than 80% of the profile types on the market. If you want to act as a profile supplier, then this machine is a perfect wealth-creating machine, which can help you expand more business and create more profits.
What else can a profile machining center process besides profiles?
Besides profiles, all long square tubes and polygonal tubes that are inconvenient to process on lathes can be processed by profile machining centers.
What materials can a Profile Machining Center process?
A CNC Profile Machining Center can process:
Aluminum profiles
Aluminum extrusions
PVC profiles
UPVC window profiles
Composite materials
Lightweight steel profiles
Copper profiles
Brass profiles
Engineering plastics
Different spindle speeds and cutting tools can be selected according to material characteristics.
What machining operations can a Profile Machining Center perform?
A Profile Machining Center supports:
CNC drilling
CNC milling
Thread tapping
Slot machining
End milling
Pocket milling
Surface milling
Engraving
Chamfering
Circular interpolation
Multi-angle machining
Automatic positioning
Multiple processes can be completed in a single clamping operation.
What are the advantages of our CNC Profile Machining Center?
Main advantages include:
High machining accuracy
Fast production speed
One-time clamping
Reduced labor costs
Improved consistency
High automation
Flexible programming
Reduced material waste
Excellent surface finish
Suitable for mass production
What spindle speed is recommended?
Aluminum: 12,000–24,000 RPM
PVC: 8,000–18,000 RPM
Copper: 8,000–15,000 RPM
Composite materials: 10,000–20,000 RPM
The actual spindle speed depends on tooling, material hardness, coolant, and cutting parameters.
How long of profiles can this machine process?
Typical machining lengths include:
3 meters
4 meters
6 meters
7 meters
8 meters
Custom lengths
Longer machines are available for industrial extrusion applications.
Can one machine process all sides of the profile?
Yes.
Many Profile Machining Centers feature:
Rotary spindle heads
Automatic angle positioning
3+1 axis
4-axis
5-axis configurations
This enables machining on multiple faces without manually repositioning the workpiece.
